Hydraulic Pullers, EAN code: 7316571005676
| Brand | SKF |
|---|---|
| Mfr Part No. | TMHP 15/260X |
| Acorn Code | TMHP15/260X-SKF |
| HS Code | 8482 99 00 90 |
| COO | Hungary (HU) |

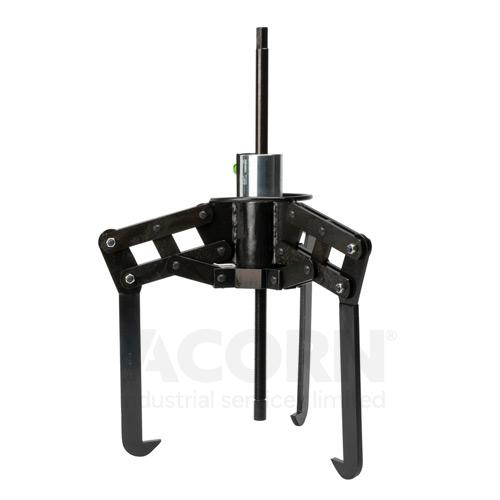

The SKF Hydraulically Assisted Heavy Duty Jaw Puller TMHP 15/260X is a powerful puller for dismounting large bearings and components. The self-centring puller, unique pantograph system and handling options make the puller safe and easy to use. The combination of a spindle and a hydraulic cylinder helps to mount the puller quickly. The SKF TMHP 15/260X comes without hydraulic pump and allows own equipment to be used.
• High pulling forces can be applied easily and safely with self-centring puller
• Easy adjustable worklength through combination of spindle and hydraulic cylinder
• Unique pantograph system gives eXceptional grip and helps counteract misalignment during operation
• Simple operation with lifting handle and eye bolt
| Manufacturer Product Code | TMHP 15/260X |
|---|---|
| Basic Product Description | Hydraulically Assisted Heavy Duty Jaw Puller |
| UOM | Each |
| Number of arms | 3 |
| Weight (Kg) | 34 |
| Stroke | 100mm |
| Claw Height | 30mm |
| Effective arm length/Reach | 264 mm |
| Maximum withdrawal force (kN) | 150 kN |
| Max Working Pressure hydraulic cylinder | 80MPa |
| Puller Type or Accessories | Hydraulic Pullers |
| Series | TMHP |
| EAN code | 7316571005676 |
