Metric, Insert, Bearing Material Bearing steel, Seal and flinger on both sides, Spherical outside diameter, Set screw locking, Standard grease, EAN code: 07316579951456
| Brand | SKF |
|---|---|
| Mfr Part No. | UCX 05 |
| Acorn Code | UCX05-SKF |
| HS Code | 8483 20 00 00 |
| COO | XXX |

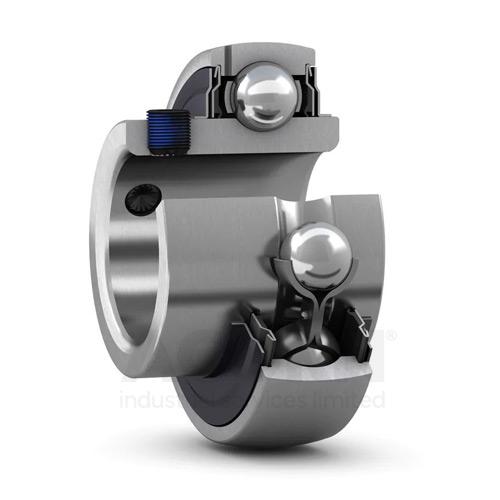

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
• Designed for a constant and alternating rotation
• Quick and easy to mount onto the shaft
• Reduce noise and vibration levels
| Manufacturer Product Code | UCX 05 |
|---|---|
| Basic Product Description | Insert bearing with set screws locking and extended inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 25 |
| od (mm) | 62 |
| Width (mm) | 38.1 |
| Weight (Kg) | 0.36 |
| Lubrication | Standard grease |
| Seals | Seal and flinger on both sides |
| Features | Spherical outside diameter |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| Bearing Material | Bearing steel |
| Dynamic load | 19.5 |
| Static load | 11.4 |
| Limiting speed | 5000 |
| EAN | 07316579951456 |
