AOH24156, Timken, Withdrawal sleeve
Metric, Sleeve, Tr 300x4, EAN code: 0013992211323
$1,315.97
Despatched in 4-5 days
Metric, Sleeve, Tr 300x4, EAN code: 7316577013781
| Brand | SKF |
|---|---|
| Mfr Part No. | AOH 24156 |
| Acorn Code | AOH24156-SKF |
| HS Code | 8482 99 00 90 |
| COO | Sweden (SE) |

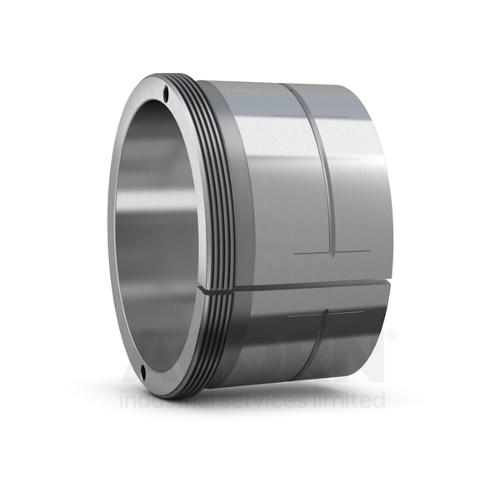

Withdrawal sleeves are slit tapered sleeves that are used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This AOH(X) sleeve has dimensions in accordance with ISO standards and are designed for oil injection mounting and dismounting. The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking device can be ordered separately. End plates are not manufactured by SKF.
• Cost effective
• Good mounting and dismounting control
• Less manual effort
• Greater operator safety
| Manufacturer Product Code | AOH 24156 |
|---|---|
| Basic Product Description | Withdrawal sleeve, for oil injection, ISO standards |
| Measurement | Metric |
| UOM | Each |
| ID or length (mm) | 260 |
| OD or breadth (mm) | 300 |
| Width or height (mm) | 202 |
| Weight (kg) | 15.21 |
| Thread | Tr 300x4 |
| Holes for oil injection | With |
| EAN code | 7316577013781 |
Metric, Sleeve, Tr 300x4, EAN code: 0013992211323
