Metric, Aluminium, Disc Coupling, Clamp style, Double disc coupling, Bored With Keyway
| Brand | Ruland |
|---|---|
| Mfr Part No. | MDCDK41-20-14-A |
| Acorn Code | MDCDK41-20-14-A-RULAND |
| HS Code | 8483 50 80 90 |
| COO | United States (US) |

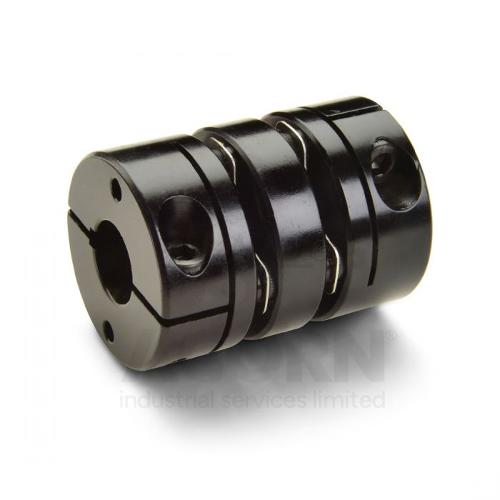

Ruland MCDK-A is a clamp double disc coupling with a keyway on the one bore and no keyway on the other bore.
It is zero-backlash and has a balanced design for reduced vibration at high speeds. The double disc design is comprised of two anodized aluminium hubs, two sets of thin stainless steel disc springs, and a centre spacer allowing each disc to bend individually and accommodate all types of misalignment.
MDCDK-A is lightweight and has low inertia making it well suited for applications with speeds up to 10,000 RPM. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities.
Ruland manufactures MDCDK-A to be torsionally rigid and an excellent fit for precise positioning stepper servo applications commonly found in semiconductor, solar, printing, machine tool, and test and measurement systems. It is machined from solid bar stock that is sourced exclusively from North American mills and RoHS3 and REACH compliant.
| Manufacturer Product Code | MDCDK41-20-14-A |
|---|---|
| Basic Product Description | Clamp double disc coupling with keyway, zero-backlash |
| Measurement | Metric |
| UOM | Each |
| Size | 41 |
| Coupling Type | Double disc coupling |
| Material | Aluminium |
| Lock Type | Clamp style |
| Bore Type | Bored With Keyway |
| Bore (B1) mm | 20 |
| Small Bore (B2) mm | 14 |
| Weight (Kg) | 0.134 |
| Ma-1 Material 1 | Aluminium |
