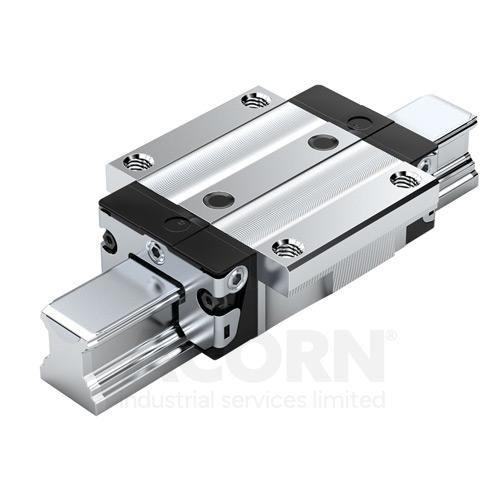

Linear slide, SS - Standard seal, C1 - Low preload, N: Standard
| Brand | Bosch Rexroth |
|---|---|
| Mfr Part No. | KWD-015-FNS-C1-N-1 |
| Acorn Code | R165111420-REXROTH |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |
• Area of application: For high rigidity requirements
• Excellent dynamic characteristics
• Significantly reduced frictional oscillations and low friction force level, particularly under external load
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six
• Attachments on the ball runner block can be mounted from above and below
• Lube fittings with metal threads on all sides
• End-face fastening thread for all attachments
• Integrated all-round sealing
• High torque load capacity
• High rigidity in all load directions - permits applications with just one runner block per rail
• Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner block
• Maximum system rigidity due to preloaded O-arrangement
• Optional integrated, inductive and wear-free measuring system
• Ball runner block pre-lubricated at the factory
• Can be used on all SNS/SNO ball guide rails
• Long-term lubrication is possible over several years
• The same high load ratings in all four main directions of loading
| Manufacturer Product Code | KWD-015-FNS-C1-N-1 |
|---|---|
| Basic Product Description | Ball runner block, FNS, steel CS, accuracy standard, low preload, without ball chain |
| UOM | Each |
| Weight (Kg) | 0.2 |
| Sealing | SS - Standard seal |
| Preload class | C1 - Low preload |
| Accuracy | N: Standard |
