Linear slide, SS - Standard seal, C0: Preload-free, N: Standard
| Brand | Bosch Rexroth |
|---|---|
| Mfr Part No. | KWD-035-SLH-C0-N-1 |
| Acorn Code | R162439420-REXROTH |
| HS Code | 8482 99 00 90 |
| COO | Germany (DE) |
• Area of application: For restricted space in the transverse direction and high rigidity requirements
• Higher rigidity than SLS
• Significantly reduced frictional oscillations and low friction force level, particularly under external load
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six
• High rigidity in all load directions - permits applications with just one runner block per rail
• High torque load capacity
• Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.
• Long-term lubrication is possible over several years
• End-face fastening thread for all attachments
• Smooth, quiet running thanks to optimally designed ball return and guideway
• Excellent dynamic characteristics
• Can be used on all SNS/SNO ball guide rails
• Ball runner block pre-lubricated at the factory
| Manufacturer Product Code | KWD-035-SLH-C0-N-1 |
|---|---|

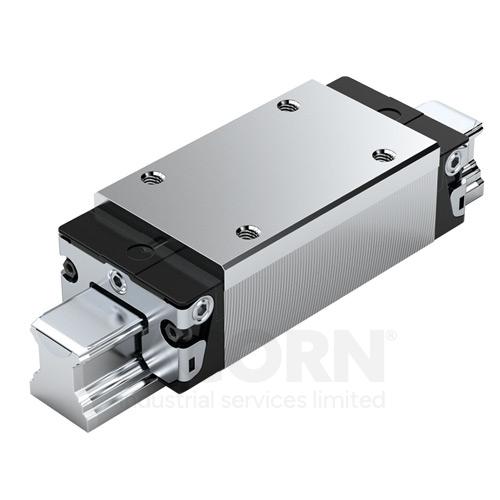

| Basic Product Description | Ball runner block, SLH, steel CS, accuracy standard, preload-free, without ball chain |
| UOM | Each |
| Weight (Kg) | 2.1 |
| Sealing | SS - Standard seal |
| Preload class | C0: Preload-free |
| Accuracy | N: Standard |
