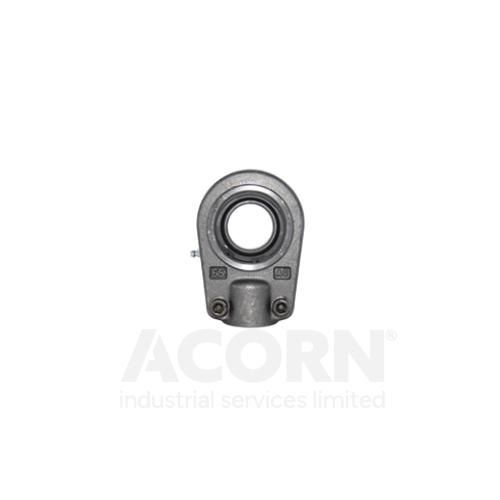

Metric, Rod end, Steel/Steel
| Brand | Neutral |
|---|---|
| Mfr Part No. | PR 35 U |
| Acorn Code | PR35U-NEUTRAL |
| HS Code | 8483 30 80 90 |
| COO | China (CN) |
Steel/Steel requiring maintenance. Wearing GE..DO (ISO12240-1), held by circlips. Hexagonal screws (DIN 912 class 12.9) allowing tightening on rod thanks to vertical cut on thread. Lubrication grease nipple assembled.
| Manufacturer Product Code | PR 35 U |
|---|---|
| Basic Product Description | Rod End with clamping screws |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 35 |
| od (mm) | 25 |
| Width (mm) | 29 |
| Outside diameter, housing eye (mm) | 29 |
| Centre height, housing (from end of shank) mm | 29 |
| Weight (Kg) | 1.15 |
| Tilt angle | Tilt angle: 6° |
| Housing material | Forged C45 steel |
| Bearing Material | Steel/Steel |
| Housing Material | Forged C45 steel |
| Bearing / Insert | GE..DO assembled |
| Basic dynamic load rating | 80 kN |
| Basic static load rating | 153 kN |
Metric, Rod end, Steel/Steel, Female connection, Right-hand thread, M28 x 1.5, Requires maintenance, EAN code: 07316577003652
Metric, Rod end, Steel/Steel, Female connection, Right-hand thread, Requires maintenance, EAN code: 4012802523751
This item is not currently available from our stocks.
Despatch date information is on request.
