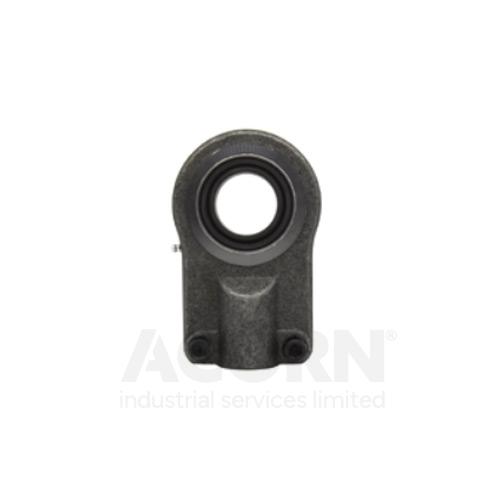

Metric, Rod end, Steel/Steel
| Brand | Neutral |
|---|---|
| Mfr Part No. | PR 25 S |
| Acorn Code | PR25S-NEUTRAL |
| HS Code | 8483 30 80 90 |
| COO | China (CN) |
GE..DO ISO 12240-1 pressed into shell, hexagonal screws (DIN912 class 12.9) allowing tightening on rod thanks to vertical cut on thread. Lubrication grease nipple assembled available from Ø 16.
| Manufacturer Product Code | PR 25 S |
|---|---|
| Basic Product Description | Rod End with clamping screws |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 25 |
| od (mm) | 25 |
| Width (mm) | 59 |
| Outside diameter, housing eye (mm) | 59 |
| Centre height, housing (from end of shank) mm | 59 |
| Weight (Kg) | 0.73 |
| Tilt angle | Tilt angle: 7° |
| Housing material | Forged C45 steel |
| Bearing Material | Steel/Steel |
| Housing Material | Forged C45 steel |
| Bearing / Insert | GE..DO assembled |
| Basic dynamic load rating | 48 kN |
| Basic static load rating | 67 kN |
