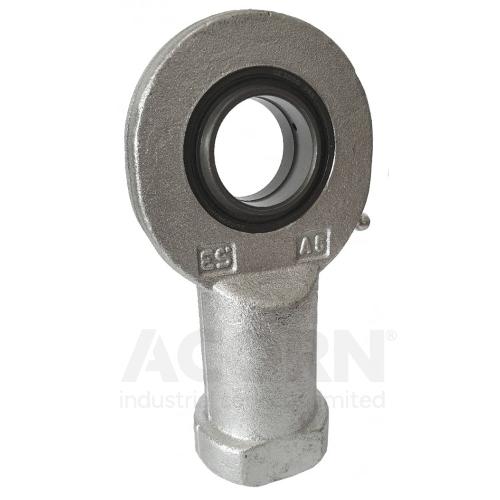

Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M6 x 1
| Brand | Neutral |
|---|---|
| Mfr Part No. | FIL6 D |
| Acorn Code | FIL6D-NEUTRAL |
| HS Code | 8483 30 80 90 |
| COO | China (CN) |
COUPLING:
Steel/Steel requiring maintenance.
ISO12240-4 series E, type F. Wearing GE..DO (ISO12240-1) up to measure 30mm, from 35mm it is mounted GE..DO-2RS with protective seals.
Bearing pressed in shell.
Lubrication grease nipple assembled from measure 20mm.
MATERIAL:
Made in C45 steel, forged. Galvanized.
They present long internal thread, suitable for a wide one wheelbase adjustment.
APPLICATION FIELDS:
Rod end for heavy duty, inner threaded. For hydraulic cylinders and industrial links. Long thread allow to fix stroke.
| Manufacturer Product Code | FIL6 D |
|---|---|
| Basic Product Description | Rod end |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 6 |
| od (mm) | 21 |
| Width (mm) | 6 |
| Thread (mm) | M6 x 1 |
| Weight (Kg) | 0.2 |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Sealing solution | Without seals |
| Housing material | Galvanised C 45 forged steel |
| Bearing Material | Steel/Steel |
| Bearing / Insert | GE..DO |
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M6, Requires maintenance, EAN code: 07316577003508
This item is not currently available from our stocks.
Despatch date information is on request.
Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, Requires maintenance, EAN code: 4012802528626
This item is not currently available from our stocks.
Despatch date information is on request.
