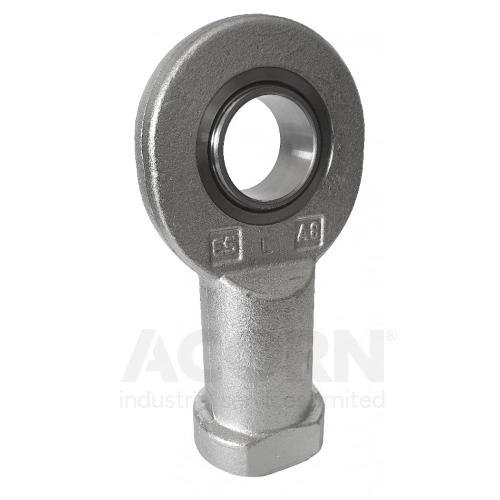

Metric, Rod end, Chromed Steel/PTFE Fabric, Female connection, Left-hand thread, M16 x 2, Maintenance-free
| Brand | Neutral |
|---|---|
| Mfr Part No. | FIL17 U |
| Acorn Code | FIL17U-NEUTRAL |
| HS Code | 8483 30 80 90 |
| COO | China (CN) |
COUPLING:
Steel/PTFE LINER maintenance free.
Rod end ISO 12240-4 within GE..UK (ISO 12240-1) up to measure 30mm, from 35mm it is mounted GE..UK-2RS with protective seals 2RS.
Bearing pressed into shell.
Lubrification not allowed.
MATERIAL:
Made in C45 steel, forged. Galvanized. They present long internal thread, suitable for a wide one wheelbase adjustment.
APPLICATION FIELDS:
Rod end for heavy duty, inner threaded. For hydraulic cylinders and industrial links. Long thread allows to fix stroke.
| Manufacturer Product Code | FIL17 U |
|---|---|
| Basic Product Description | Rod end |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 17 |
| od (mm) | 46 |
| Width (mm) | 14 |
| Thread (mm) | M16 x 2 |
| Weight (Kg) | 0.22 |
| Lubrication | Maintenance-free |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Sealing solution | Without seals |
| Housing material | Galvanised C 45 forged steel |
| Bearing Material | Chromed Steel/PTFE Fabric |
| Bearing / Insert | GE..UK |
