AH2317, Neutral, Withdrawal sleeve

Metric, Sleeve

Brand Neutral
Mfr Part No. AH2317
Acorn Code AH2317-NEUTRAL
HS Code 8482 99 00 90
COO China (CN)

$12.83

+
in stock

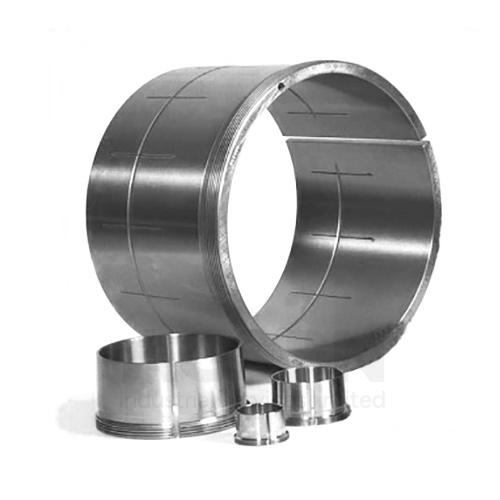

Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts (Lock nuts requiring a keyway) with appropriate locking devices are suitable. Lock nuts are not supplied with the sleeve and must be ordered separately.

Specification

Product Attributes
Manufacturer Product Code AH2317
Basic Product Description Withdrawal sleeve
Measurement Metric
UOM Each
Weight (kg) 0.65
Holes for oil injection Without
