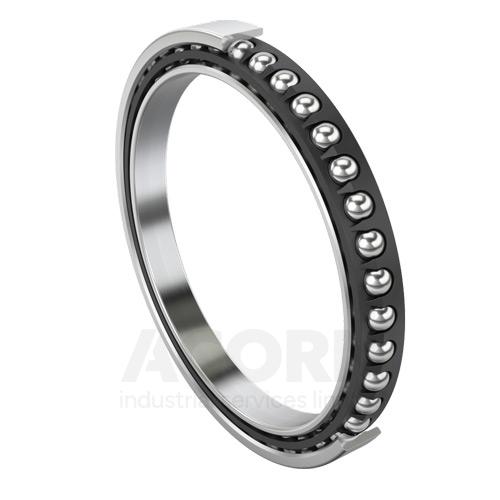

Bearing, Single, Polymer cage, Open (No seal), 40° Contact angle, Normal (PN), 4054362004394
| Brand | INA |
|---|---|
| Mfr Part No. | 71813-TN |
| Acorn Code | 71813-TN-INA |
| HS Code | 8482 10 90 30 |
| COO | Germany (DE) |
S0 = Rings dimensional stabilized up to 150°
| ManufacturerProductCode | 71813-TN |
|---|---|
| Measurement | Metric |
| UOM | Single |
| id (mm) | 65 |
| od (mm) | 85 |
| Width/Total (mm) | 10 |
| Weight (Kg) | 0.125 |
| Sealing | Open (No seal) |
| Contact Angle | 40° Contact angle |
| Accuracy | Normal (PN) |
| Cage material | Polymer cage |
| Bearing Material | Bearing Steel |
| Basic dynamic load rating | 15200 |
| Basic static load rating | 15800 |
| Limiting speed | 9600 |
| EAN-Code | 4054362004394 |
