Metric, Bearing, Metal shield on both sides, Normal Clearance (Cn)
| Brand | INA |
|---|---|
| Mfr Part No. | ZKLF2575-2Z-2AP-XL |
| Acorn Code | ZKLF2575-2Z-2AP-XL-INA |
| HS Code | 8482 10 90 30 |
| COO | Germany (DE) |
| Manufacturer Product Code | ZKLF2575-2Z-2AP-XL |
|---|---|

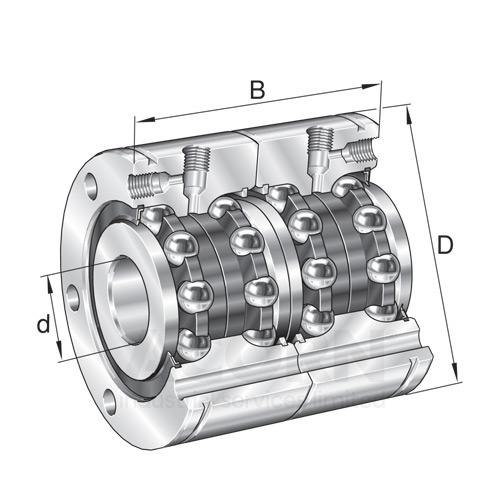

| Basic Product Description | Axial angular contact ball bearings, double direction, for screw mounting |
| Measurement | Metric |
| UOM | Pair |
| id (mm) | 25 |
| od (mm) | 75 |
| Width (mm) | 56 |
| Weight (Kg) | 1.383 |
| Seals/Shields | Metal shield on both sides |
| Clearance | Normal Clearance (Cn) |
| Contact Angle | 60° Contact angle |
| Precision Grade | Super Precision |
| Dynamic Load Rating C (N) | 0 |
| EAN-Code | 4012802454185 |
