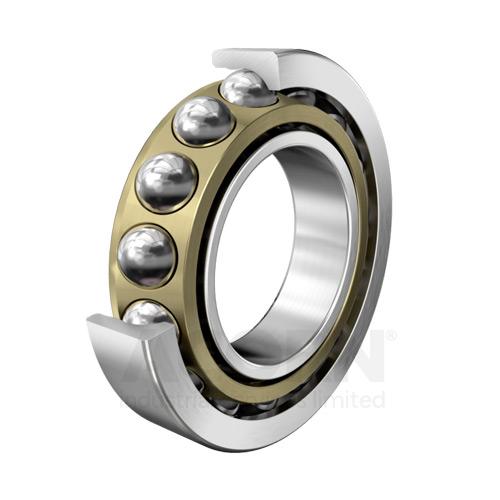

7208 BECBM, SKF, Single row angular contact ball bearing
Bearing, Single, Brass cage, 40° Contact angle, P6, 7316576632877
$73.78
In stock
Bearing, Single, Brass cage, Open (No seal), 40° Contact angle, Class6 (P6), better than PN, 4012801165983
| Brand | FAG |
|---|---|
| Mfr Part No. | 7208-B-XL-MP-UA |
| Acorn Code | 7208-B-XL-MP-UA-FAG |
| HS Code | 8482 10 90 30 |
| COO | Germany (DE) |
S0 = Rings dimensional stabilized up to 150°
| ManufacturerProductCode | 7208-B-XL-MP-UA |
|---|---|
| Measurement | Metric |
| UOM | Single |
| id (mm) | 40 |
| od (mm) | 80 |
| Width/Total (mm) | 18 |
| Weight (Kg) | 0.407 |
| Sealing | Open (No seal) |
| Contact Angle | 40° Contact angle |
| Accuracy | Class6 (P6), better than PN |
| Matched arrangement | Universal design for fitting in pairs, bearing pair has a small axial internal clearance in O and X arrangement |
| Cage material | Brass cage |
| Bearing Material | Bearing Steel |
| Basic dynamic load rating | 36000 |
| Basic static load rating | 23500 |
| Limiting speed | 15500 |
| EAN-Code | 4012801165983 |
Bearing, Single, Brass cage, 40° Contact angle, P6, 7316576632877
Bearing, Single, 40° Contact angle, 00029176783807
This item is not currently available from our stocks.
Despatch date information is on request.
Bearing, Single, Brass cage, Open (No seal), 40° Contact angle, P5
Bearing, Single, Brass cage, 40° Contact angle, 9008745702792
This item is not currently available from our stocks.
Despatch date information is on request.
