EWELLIX Code : M/2241341, T0 - Play T0, P5 - Standard
| Brand | Ewellix |
|---|---|
| Mfr Part No. | LLRHC 25L RT0P5 |
| Acorn Code | LLRHC25LRT0P5-EWX |
| HS Code | 8482 99 00 90 |
| COO | Romania (RO) |
Profile rail guides Ewellix profile rail guides are designed for linear movement and combine rails and carriages according to the customer application. As the balls within the carriages are recirculating continuously, profile rail guides offer a virtually unlimited stroke. All profile rail guides from Ewellix use modular components: each rail, carriage and / or accessory of the same series can be combined with each other, thus offering easy adaptation to different application demands.
| Manufacturer Product Code | LLRHC 25L RT0P5 |
|---|---|

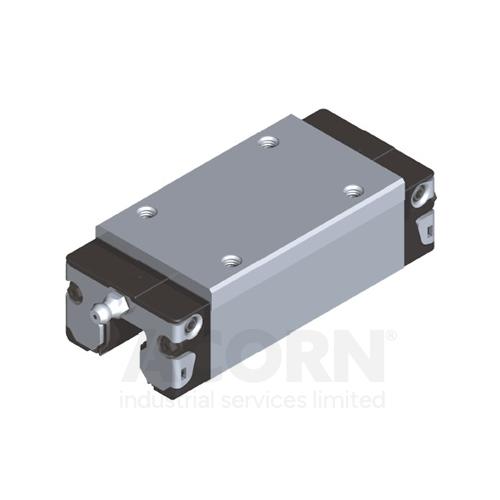

| Basic Product Description | Linear Slide, slim line, high, long |
| UOM | Each |
| Weight (Kg) | 0.8 |
| Preload class | T0 - Play T0 |
| Accuracy | P5 - Standard |
| Option | LR |
| Temperature resistance | -20 to +80 °C |
| Speed vmax | 5 m/s |
| Acceleration amax | 500 m/s2 |
