In industries where precision and accuracy are paramount, backlash-free couplings play a critical role. These specialised couplings are designed to eliminate backlash, ensuring smooth and reliable performance in various applications, including servo motors, stepper motors, encoders, and positioning systems.
At Acorn Industrial, we offer a comprehensive range of backlash-free couplings available in both imperial and metric dimensions, tailored to meet your specific needs.
Many components are spaced out to ensure that contact surfaces do not touch. This may be to allow for lubrication or thermal expansion, or it could be down to manufacturing tolerances or deflection under load. This spacing of components can cause backlash within the application.
Backlash occurs when a force is applied to a component as a result of the movement of another component. This can be seen in action when a train changes direction: the carriages shake and you hear clattering noises.
Even systems which are described as zero-backlash are likely to have a small amount of backlash. However, this is often so small that it doesn’t affect the application.
Precision applications such as robotics and servo applications need a high level of accuracy, so any lost motion caused by backlash is a problem.
Backlash is commonly associated with couplings. This is because backlash can accumulate in couplings as the joining piece for components. By selecting a backlash free coupling, the effects of backlash can be minimised within the system.
If you need assistance with minimising backlash in your application, contact our dedicated couplings division.
It's important to reduce backlash to make your machine work better and more reliable. At Acorn, we are dedicated to finding the best solutions for minimising backlash in your systems. Here are some good ways to do this:

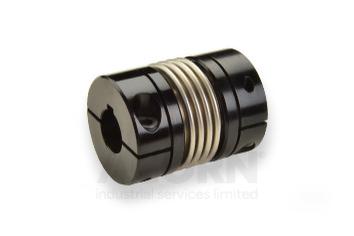

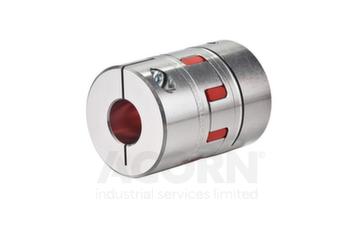

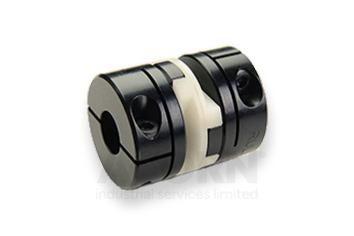

Use Backlash-Free Couplings: Our range of backlash-free couplings, including beam, bellows, Oldham, and jaw couplings, are designed to eliminate backlash and ensure smooth and accurate motion control.
Precision Manufacturing: Choose high-quality parts with tight tolerances. Our products are made to the highest standards, which reduces the chances of backlash.
Regular maintenance: Regular maintenance and inspections will keep your equipment in good condition. Acorn offers regular maintenance to make sure your equipment works well and is safe.
Proper installation: Make sure everything is installed correctly and aligned. Acorn offers expert installation services and advice to help you get the best alignment and minimise backlash.
Upgrade components: Upgrade components to better materials and designs. Our team at Acorn can help you find the best components for your needs.
By using these methods, you can reduce backlash and improve your operations. At Acorn, we can help you achieve optimal performance in your machinery.
At ACORN industrial services, our offerings extending beyond just back-lash free couplings. We are committed to providing other couplings & drives products to meet your industrial needs:
Backlash-free couplings is a specialised coupling designed to eliminate backlash, ensuring smooth and precise motion control in various applications.
Backlash occurs when there are small gaps or clearances between the mating components in mechanical systems, such as gears or couplings. These gaps allow for slight movements when the direction of force changes, which leads to a delay in the system's response.
This can happen because of manufacturing tolerances, wear and tear, or improper installation. At Acorn, our backlash-free couplings are designed to eliminate these gaps and ensure smooth, precise, and reliable operation of your machinery.
They are commonly used in servo motors, stepper motors, encoders, and positioning systems where precision and accuracy are essential.
Zero backlash means that there is no play or clearance between mating components in a mechanical system. This means that when you apply force, it responds quickly and accurately without any gaps or slipping.
