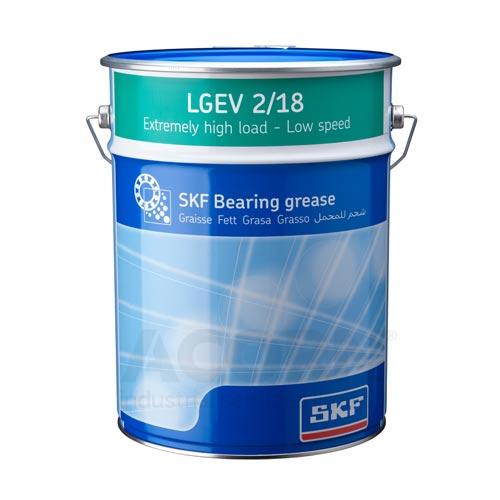

LGEV 2/18, SKF, Extremely high viscosity grease, 18 kg pail

Grease, Pail, > 180 °C, 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max., 50 hours at 100 °C, 10-1 mm: +50 max., 1 max. at 100 °C, EAN code: 7316577745590

SKF
Brand SKF
Mfr Part No. LGEV 2/18
Acorn Code LGEV2/18-SKF
HS Code 2710 12 15 00
COO Germany (DE)

$660.29

+

SKF LGEV 2 is a mineral oil based grease, using a lithium-calcium soap. It has a high content of molybdenum disulphide and graphite, in conjunction with an extremely high viscosity oil. This provides outstanding protection under the harshest conditions involving high loads, slow rotations and severe vibrations.

Features & benefits:
• Extremely suitable for lubricating large sized spherical roller bearings subject to high loads and slow rotations, a situation where microslip is likely to occur
• Extremely mechanically stable providing good water resistance and corrosion protection

Typical applications:
• Trunnion bearings on rotating drums
• Support and thrust rollers on rotary kilns and dryers
• Bucket wheel excavators
• Slewing ring bearings
• High pressure roller mills
• Crushers

Specification

Product Attributes
Manufacturer Product Code LGEV 2/18
Basic Product Description Extremely high viscosity grease, 18 kg pail
Size (Per Unit) 18 Kg
UOM Each
Base Oil Viscosity cSt @ 40°C 1020
Weight (Kg) 19.66
Dropping point > 180 °C
Penetration DIN ISO 2137 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max.
Roll stability ASTM D1831 50 hours at 100 °C, 10-1 mm: +50 max.
Corrosion protection ISO 11007 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Oil separation DIN 51 817 7 days at 40 °C: 1-5 %
Copper corrosion DIN 51811 1 max. at 100 °C
EP performances DIN 51350 Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3000 N
Thickener Lithium/calcium
Base type Mineral
Colour Black
Container Pail
Water resistence 3 hours at 90 °C: 1 max.
Operating Time -10°C
Ex-2 Features 2 60 strokes, 10-1 mm: 265-295; 100000 strokes, 10-1 mm: 325 max.
Ex-3 Features 3 50 hours at 100 °C, 10-1 mm: +50 max.
Ex-4 Features 4 Standard (distilled water): 0-0; Water wash out: 0-0; Salt water test (100% salt water): 0-0
Series 7 days at 40 °C: 1-5 %
Model 1 max. at 100 °C
In-6 Internal Features 6 Wear scar DIN 51350/5,1400N: < 1.2 mm; Weld load DIN 51350/4: > 3000 N
Te-2 Laser Line Length 3 hours at 90 °C: 1 max.
Lower Operating Temperature -10°C
Upper Operating Temperature +120°C
Basic Reference Grease
EAN code 7316577745590
